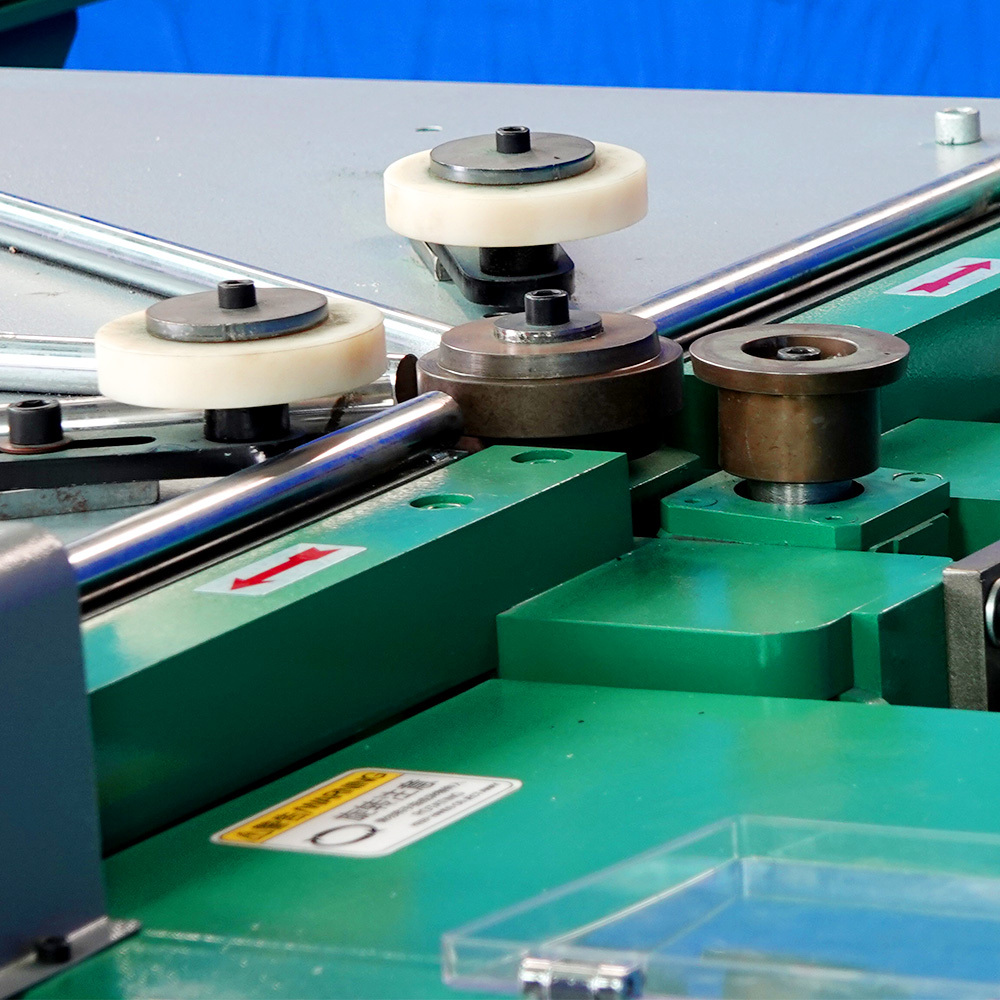

In the flanging process, the metal plate is placed on the reel spindle, through the pressure provided by the hydraulic system, the reel frame will clamp the metal plate, the roller begins to gradually roll the plate, through the cooperation with the press roller, the plate flanging and finish the processing.
1.high degree of automation, simple operation, easy, high production efficiency, product quality assurance, and environmental protection, energy saving, reduce labor intensity, improve economic benefits.
2.Good adjustable performance, short production cycle, can be adjusted to make the speed, stroke length, suitable for size diameter, different height of the product processing.
3.the mold design is reasonable, simple, good versatility, easy installation, debugging, can achieve a multi-purpose model, a machine multi-function effect.
| Model | Processing Diameter | Thickness | Flanging Width | Driving Power | Weight | Dimension |
| WY-3-1200 | 100-1200 mm | 3 mm | 4-25 mm | 3 kw | 800kg | 2500*2100*850mm |
